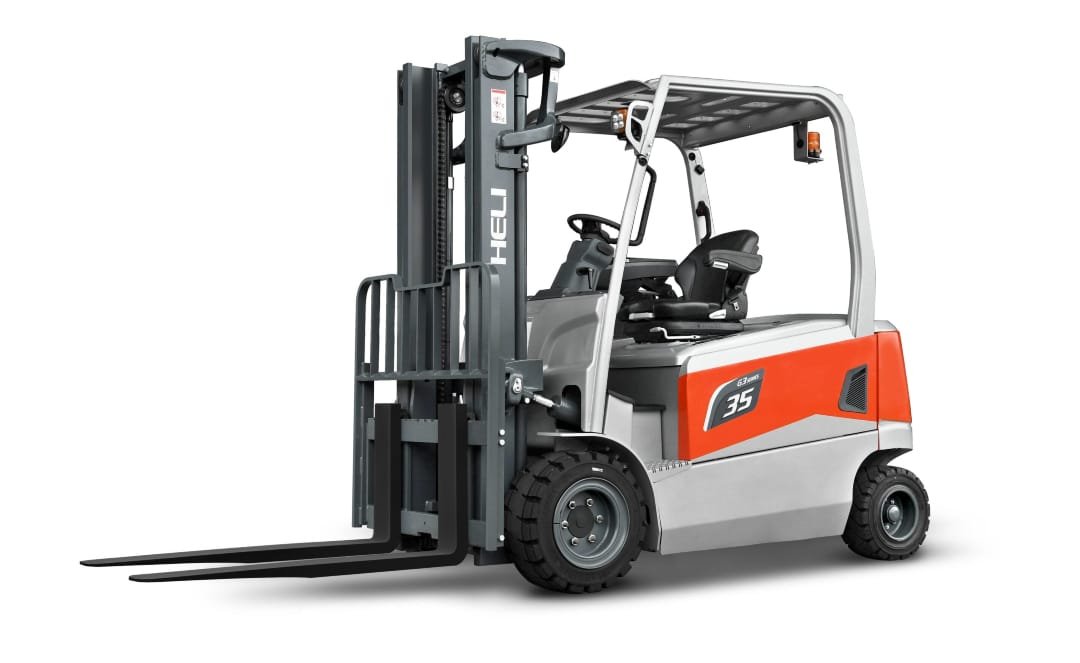

2.5-3.5T 4-Wheel Battery Forklift (G3 Series - CPD25/30/35)

$0.00
Add To Cart

CHARACTERISTIC BENEFITS

    • The forklift is equipped with dual drive motors on the front wheels, delivering enhanced power and operational efficiency.

    • It features either a Heli or ZF dual motor drive unit, a high-speed ratio reducer, a high-power IP54 grade AC motor, and an oil-cooled multi-disc brake system.

    • Ensures the forklift is powerful, efficient, reliable, and maintenance-free, while also being low in noise.

    • Its narrow design makes the truck particularly suitable for use in tight aisles.

    • The large-angle steering bridge significantly reduces the turning radius, facilitating stress-free loading and unloading in narrow spaces.

    • The truck automatically decelerates when cornering to reduce the risk of overturning.

    • Steering is activated by the steering wheel, which also controls the oil flow according to the speed of the steering wheel, enhancing safety and precision.

    • The lithium battery features an automatic heating function in low temperatures, ensuring excellent adaptability.

    • An intelligent operation protection system (OPS) prevents misuse and enhances safety.

    • The control valve is positioned on the right for increased comfort.

    • The layout of the front vision and instruments, designed with ergonomics in mind, ensures safe and comfortable operation.

    • The truck also boasts an enlarged boarding area and more space for foot operation, alongside a rear handle and warning horn for safer reversing.

    • An optional Grammer full suspension seat offers superior driving comfort.

MODEL SPECIFICATIONS

  • Rated Capacity: 2500kg

    Height (lowered/lifted): 2155/3000mm

    Length (with/without fork): 3495/2425mm

    Overall Width: 1195mm

    Travel Speed (laden/unladen): 20/20km/h

    Lift Speed (laden/unladen): 0.5/0.6m/s

  • Rated Capacity: 3000kg

    Height (lowered/lifted): 2155/3000mm

    Length (with/without fork): 3540/2470mm

    Overall Width: 1195mm

    Travel Speed (laden/unladen): 19/20km/h

    Lift Speed (laden/unladen): 0.5/0.6m/s

  • Rated Capacity: 3500kg

    Height (lowered/lifted): 2155/3000mm

    Length (with/without fork): 3545/2475mm

    Overall Width: 1195mm

    Travel Speed (laden/unladen): 19/20km/h

    Lift Speed (laden/unladen): 0.44/0.54m/s
