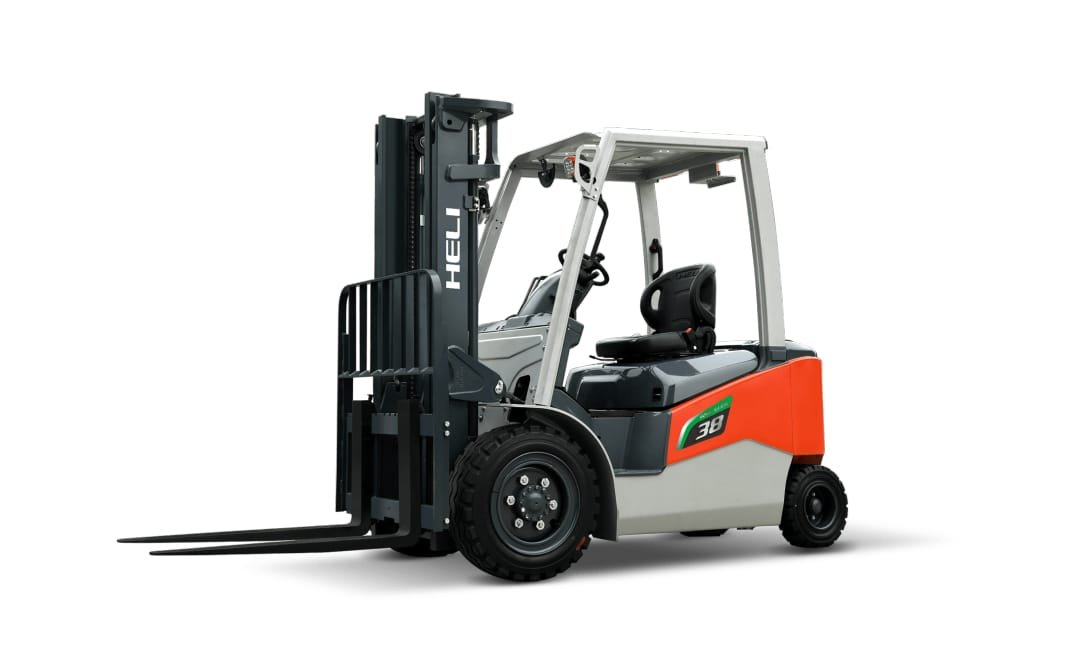

1.5-3.8T 4-Wheel Battery Forklift (G2 Series - CPD15/18/20/25/30/35/38)

Customers have the option to choose from three distinct configurations: S, M, and H. Notably, the M and H configurations offer performance levels on par with internal combustion trucks, covering a wide range of operational needs.

• The truck features auto steering deceleration to minimise the risk of tipping over by adjusting the oil quantity based on steering wheel speed. The PES Three-speed mode allows operators to select from multiple speed settings according to the task at hand, ensuring both work efficiency and safety.


• Additionally, the lithium battery is equipped with an automatic heating feature in low temperatures, ensuring reliable performance under various environmental conditions.

• Designed with ample space for boarding and foot operation, the truck promises a more comfortable operating experience. A new type of ratchet hand brake has been introduced, reducing the required operating force by 17%.


• The brake fluid is easily accessible for quick checks and refills. Thoughtful additions like a USB power supply and an IC truck type control valve stem are tailored to fit the driver's preferences more closely.

• HELI lithium battery forklift trucks stand out for their cost-effectiveness over their lifecycle.

• When compared to internal combustion forklifts, they offer significant advantages such as no noise, no pollution, minimal vibration, and ease of operation.

• Versus lead-acid battery forklifts, the lithium battery models boast rapid charging capabilities and the flexibility to charge at any time, making them ideal for multi-shift operations.

The integration of a cast drive axle and a reinforced cast steering axle has been market-tested, proving their maturity and reliability. The mast's force optimisation design enhances the truck's overall performance and contributes significantly to operational safety

Rated Capacity: 1500kg

Height (lowered/lifted): 1955/3000mm

Length (with/without fork): 3060/2140mm

Overall Width: 1120mm

Travel Speed (laden/unladen): 19/20km/h

Lift Speed (laden/unladen): 0.5/0.6m/s

Rated Capacity: 1800kg

Height (lowered/lifted): 1955/3000mm

Length (with/without fork): 3060/2140mm

Overall Width: 1120mm

Travel Speed (laden/unladen): 19/20km/h

Lift Speed (laden/unladen): 0.5/0.6m/s

Rated Capacity: 2000kg

Height (lowered/lifted): 1955/3000mm

Length (with/without fork): 3060/2140mm

Overall Width: 1120mm

Travel Speed (laden/unladen): 19/20km/h

Lift Speed (laden/unladen): 0.31/0.5m/s

Rated Capacity: 2500kg

Height (lowered/lifted): 2000/3000mm

Length (with/without fork): 3052/2432mm

Overall Width: 1140mm

Travel Speed (laden/unladen): 19/20km/h

Lift Speed (laden/unladen): 0.47/0.6m/s

Rated Capacity: 3000kg

Height (lowered/lifted): 2070/3000mm

Length (with/without fork): 3639/2569mm

Overall Width: 1225mm

Travel Speed (laden/unladen): 18/19km/h

Lift Speed (laden/unladen): 0.48/0.6m/s

Rated Capacity: 3500kg

Height (lowered/lifted): 2070/3000mm

Length (with/without fork): 3639/2569mm

Overall Width: 1225mm

Travel Speed (laden/unladen): 14/15km/h

Lift Speed (laden/unladen): 0.44/0.54m/s

Rated Capacity: 3800kg

Height (lowered/lifted): 2180/3000mm

Length (with/without fork): 3692/2622mm

Overall Width: 1392mm

Travel Speed (laden/unladen): 17/18km/h

Lift Speed (laden/unladen): 0.39/0.51m/s
