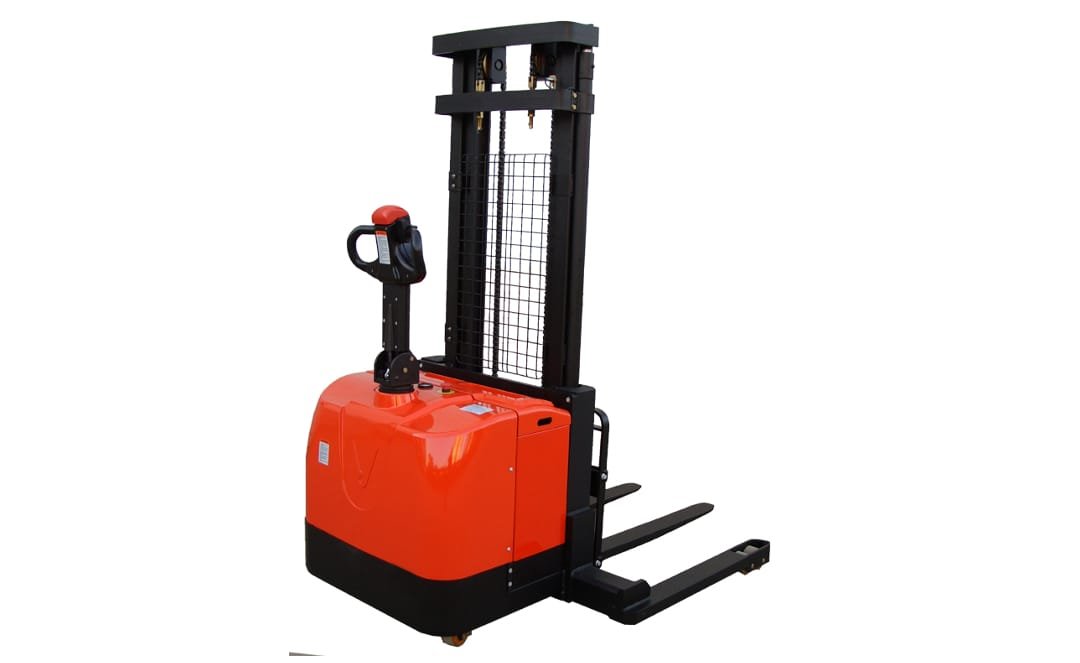

1.4T Electric Walkie Stacker Forklift (CTD14-920)
CHARACTERISTIC BENEFITS
-
Features an electronic power steering system that is both light and operates quietly.
Incorporates a two-way magnetic valve with three drop speed modes for enhanced control.
Drive unit floating bodies boast a patented design for improved performance.
The AC driving system is brushless and maintenance-free, ensuring long-term reliability.
Employs an electromagnetic regenerative braking system for energy recovery.
Includes an automatic lifting limit with a proximity switch for extended durability.
The LFP model lithium batteries offer rapid charging and are highly efficient.
-
Curve automatic deceleration devices increase safety by reducing speed in turns.
The vehicle automatically decelerates when the load is at a higher position for added safety.
A stepless speed control system ensures operations are both safe and quiet.
The controller is equipped with multiple automatic protection features for comprehensive safety.
An emergency reversing device/emergency brake switch is available for critical situations.
High position automatic reduction device reduces speed when lifting to higher heights for safer operation.
MODEL SPECIFICATIONS
-
Max Working Height:
1900/2500/3000/3500/
3800/4100/4500mmOverall Length: 2005/2425mm
Overall Width: 1470mm
Travel speed (laden/unladen): 6/6kmph
Service weight with battery:
1276kg (lead-acid)
1140kg (lithium) -
Max Working Height:
1900/2500/3000/3500/
3800/4100/4500mmOverall Length: 2005/2425mm
Overall Width: 1470mm
Travel speed (laden/unladen): 6/6kmph
Service weight with battery:
1336kg (lead-acid)
1200kg (lithium)
