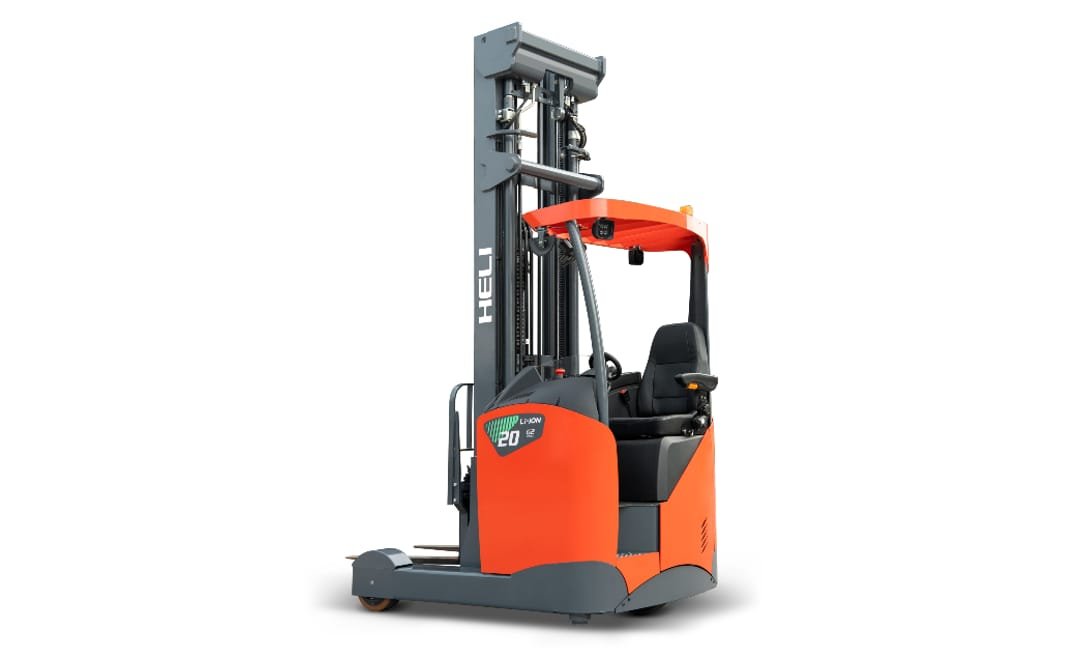

1.2-1.6T Sit-Down Reach Truck (G2 Series - CQD12/14/16)
CHARACTERISTIC BENEFITS
-
Lifting speed enhancement by 10% allows for more goods to be handled under identical conditions.
Boasts rapid driving and lifting speeds, leading to greater work efficiency.
Equipped with a ZAPI Dual CPU controller, adhering to the latest EU standards.
Optional ZAPI instrument with a height preset function for reaching predetermined heights with a single button, streamlining operations.
Small turning radius ensures flexible and effortless steering.
-
EPS (Electric Powered Steering) provides easy, flexible, efficient, and quiet control.
Features a steering motor controller with an automatic centering function.
Allows real-time switching between 180° steering mode and 360° steering mode.
Automatically regulates speed and acceleration during steering for enhanced control.
-
Incorporates a newly designed hydraulic system with high operational efficiency.
High-power lifting motor and MOSFET speed control electric controller for improved lifting.
New, low noise gear pump increases maximum lifting speed by 15% without load and 25% with load.
-
Simplified control over hydraulic functions with clear, intuitive operating units.
Proportional solenoid valve ensures stable and comfortable lowering action.
-
The redesigned overhead guard offers improved visibility for the operator.
Standard handrails enhance the ease of getting on and off the vehicle.
Provides a larger space for operator ingress and legroom, improving comfort and safety.
MODEL SPECIFICATIONS
-
Rated Capacity: 1200kg
Height (lowered/lifted): 2314/4600mm
Truck Body Length (without fork): 1760mm
Truck Body Width: 1120mm
Travel Speed (laden/unladen): 14/14km/h
Lift Speed (laden/unladen): 0.45/0.7m/s
-
Rated Capacity: 1400kg
Height (lowered/lifted): 2314/4600mm
Truck Body Length (without fork): 1847mm
Truck Body Width: 1120mm
Travel Speed (laden/unladen): 14/14km/h
Lift Speed (laden/unladen): 0.45/0.7m/s
-
Rated Capacity: 1600kg
Height (lowered/lifted): 2314/4600mm
Truck Body Length (without fork): 1847mm
Truck Body Width: 1120mm
Travel Speed (laden/unladen): 14/14km/h
Lift Speed (laden/unladen): 0.45/0.7m/s
